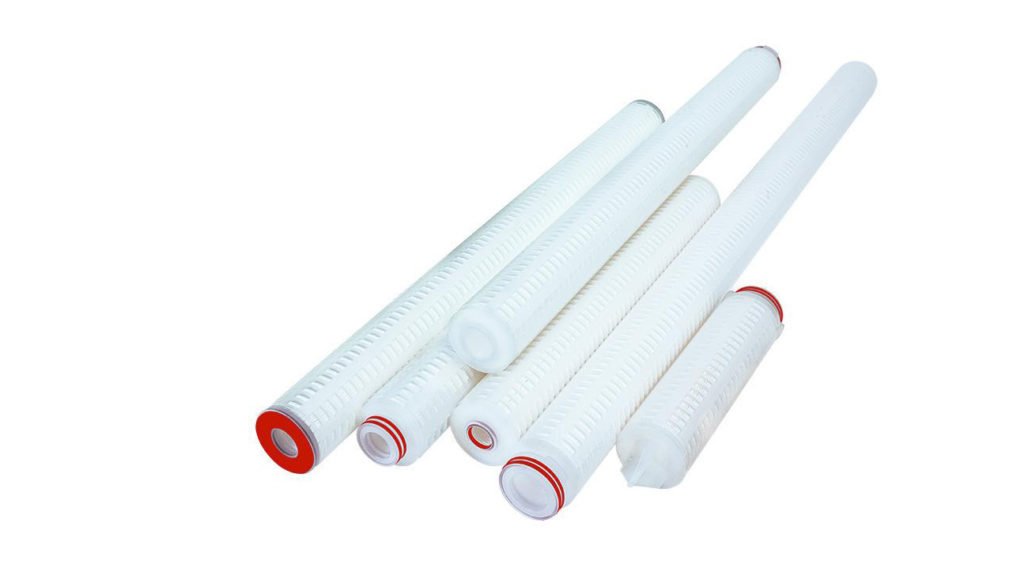

FG-Series-Pleated-Depth-Cartridges-1024×576

FG-Series

FG-Series High Purity Pleated Borosilicate Microglass Filter Cartridges offer high-efficiency retention of particulate matter from liquid and gaseous fluid streams. Favored for its superior retention efficiency, low-pressure drop, and greater contaminant loading capacity relative to alternative medias. The outside diameter is 2.75 inches (7.0 cm) nominal.

FG-Series Overview

Favored for its superior retention efficiency, low-pressure drop, and greater contaminant loading capacity relative to alternative media. Suitable for food and potable water contact, the FG-Series delivers to the high-performance demands in food production and bottled water. Also has broad use with process water, lubricants, and a range of fine chemicals. Manufactured in a clean-room environment to maintain high standards of purity and cleanliness. Offered in both absolute-rated (up to 99.98% retention) and nominally-rated (90% retention)

Typical Applications

  • Food & Beverage
  • Deionized Water
  • Process Water
  • Fine Chemicals
  • Wastewater
  • Produced Water
  • Wine Clarification
  • Sweeteners
Category:

Construction

Filtration Media – Borosilicate micro glass with acrylic binder

Support Media – Spun-bonded polyester

End Caps – Polypropylene

Center Core – Glass-reinforced polypropylene

Outer Support Cage – Polypropylene

Outside Diameter – 2.75″

Operating Conditions

  • Change Out ΔP (recommended): 35 PSID
  • Temperature (max): 176 ̊F (80 ̊C)
  • Differential Pressure (max): 60 PSID (4.1 bar) at 68 ̊F (20 ̊C)

Sanitization/Sterilization

  • Filtered Hot Water: 80 ̊C for 30 min.
  • Steam Sterilization: 121 ̊C for 30 min., multiple cycles
  • Chemicals: Cartridges are compatible with most chemical sanitizing agents

Toxicity

All polypropylene components meet the specifications for biological safety per USP Class VI – 121 ̊C for plastics.

Flow Rate vs Pressure Drop

Food Safety Compliance

Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21CFR. Materials used to produce filter media and hardware are deemed safe for use in contact with foodstuffs in accordance with EU Directives 1935/2004 and/or 10/2011.

FG-Series Ordering Specifications

Micron Ratings 0.2, 0.45, 1.0, 2.0, 5.0, 10.0, 20.0, 40.0
Retention N=Nominal, A=Absolute
Length 10″, 20″, 30″, 40′
End Cap Styles 2 = DOE Flat Gasket
3 = 22 w/ FIN
4 = 222 w/ Flat Cap
5 = 222 w/ Spring
6 = 226 w/ Flat Cap
7 = 226 w/ FIN
8 = 226 w/ Spring
16 = 213 Internal O-Ring
28 = 222 3-Tabs w/ FIN
O-Rings/Gaskets B = Buna
E = EPDM
T = Teflon® Encapsulated Viton®
V = Viton®
Z = Teflon® Encapsulated Silicone
Adders CS = 316SS Compression Spring
I = Stainless Steel Insert
R = 18 Megaohm Rinse
SS = Stainless Steel Core
