EN1822 | Width (mm) | Height (mm) | Depth (mm) | Initial Pressure Drop (Pa) | Air Flow (m3/hr) |
---|---|---|---|---|---|
H13 | 610 | 610 | 73 | 250 | 1190 |
H13 | 450 | 450 | 73 | 250 | 638 |
H13 | 305 | 305 | 73 | 250 | 298 |
H13 | 610 | 610 | 81 | 250 | 1190 |
H13 | 450 | 450 | 81 | 250 | 638 |
H13 | 305 | 305 | 81 | 250 | 298 |
H13 | 610 | 610 | 105 | 250 | 1700 |
H13 | 450 | 450 | 105 | 250 | 918 |
H13 | 305 | 305 | 105 | 250 | 425 |
H13 | 610 | 610 | 124 | 250 | 2040 |
H13 | 450 | 450 | 124 | 250 | 1105 |
H13 | 305 | 305 | 124 | 250 | 510 |
H13 | 610 | 610 | 135 | 250 | 2040 |
H13 | 450 | 450 | 135 | 250 | 1105 |
H13 | 305 | 305 | 135 | 250 | 510 |
H13 | 610 | 610 | 149 | 250 | 2720 |
H13 | 450 | 450 | 149 | 250 | 1445 |
H13 | 305 | 305 | 149 | 250 | 680 |
H14 | 610 | 610 | 73 | 250 | 1122 |
H14 | 450 | 450 | 73 | 250 | 595 |
H14 | 305 | 305 | 73 | 250 | 272 |
H14 | 610 | 610 | 81 | 250 | 1122 |
H14 | 450 | 450 | 81 | 250 | 595 |
H14 | 305 | 305 | 81 | 250 | 272 |
H14 | 610 | 610 | 105 | 250 | 1598 |
H14 | 450 | 450 | 105 | 250 | 850 |
H14 | 305 | 305 | 105 | 250 | 400 |
H14 | 610 | 610 | 124 | 250 | 1921 |
H14 | 450 | 450 | 124 | 250 | 1037 |
H14 | 305 | 305 | 124 | 250 | 476 |
H14 | 610 | 610 | 135 | 250 | 1921 |
H14 | 450 | 450 | 135 | 250 | 1037 |
H14 | 305 | 305 | 135 | 250 | 476 |
H14 | 610 | 610 | 149 | 250 | 2550 |
H14 | 450 | 450 | 149 | 250 | 1360 |
H14 | 305 | 305 | 149 | 250 | 638 |

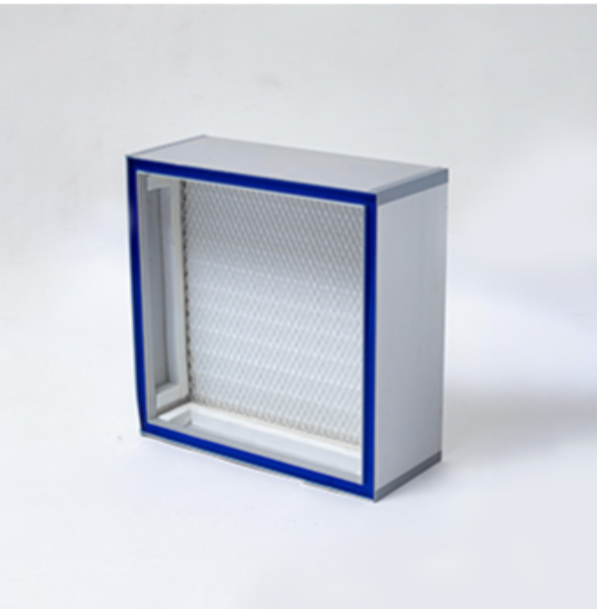

Gel Seal HEPA
Spectrum Gel seal HEPA filter is a type of high-efficiency particulate air filter that uses a gel seal to ensure a leak-free seal between the filter and the filter housing. Gel seal HEPA filters are commonly used in applications where the air quality is critical, such as in clean rooms, laboratories, and hospitals
-
High efficiency micro glass fibre filter media
- Each filter is tested for guaranteed efficiency and delivered together with the corresponding test certificate
- High Air Flow
- Thin and lightweight
- Easy to handle units
- Gel seal gasket
