Construction Materials
- Membrane Media: Polysulfone
- Support Media: Polypropylene
- End Caps: Polypropylene
- Center Core: Polypropylene
- Outer Support Cage: Polypropylene
- O-Rings/Gaskets: Buna, EPDM, Silicone, Teflon® Encapsulated Viton®, Viton®, Teflon® Encapsulated Silicone
Typical Applications
- Deionized Water Systems
- General Water Filtration
- Liquid Clarification
- Recirculating Fluids
- Chemical Filtration
Operating Conditions
- Change-Out ΔP (recommended): 35 PSID
- Temperature (max): 176˚F (80˚C)
- Differential Pressure (max): 50 PSID (3.4 bar) at 68˚F (20˚C)
Sanitization/Sterilization
- Filter Hot Water: 80˚C for 30 min
- Steam Sterilization: 121˚C for 30 min., multiple cycles
- Chemicals: Cartridges are compatible with most chemical sanitizing agents.
- Note: Stainless steel insert option is required for all cartridges being hot water sanitized or steam sterilized.

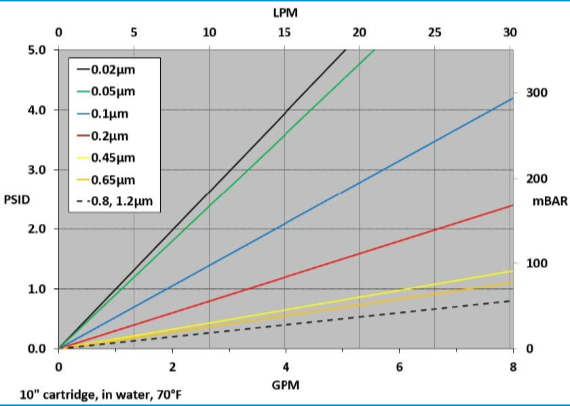

Flow Rate vs Pressure Drop
Dimensions
- Length: 10 to 40 inches ( 254 to 101.6 cm) nominal
- Outside Diameter: 2.70 inches (7.0 cm) nominal
Food Safety Compliance
Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21 CFR. Materials used to produce filter media and hardware are deemed safe for use in contact with foodstuffs in accordance with EU Directives 1935/2004, and/or 10/2011.
Toxicity
All polypropylene components meet the specifications for biological safety per USP Class VI – 121˚C for plastics.

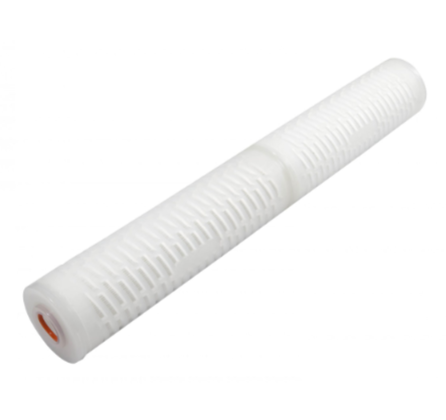

GHPS-Series Overview
It’s a preferred choice in applications requiring the efficiency of a membrane but where longer service life is important. Its hydrophilic nature allows immediate wet-out and optimizes the utility of the membrane surface area. Manufactured in a high-purity, thermally-bonded construction for cleanliness and broad compatibility, the optional post-rinse feature provides a cartridge with quick rinse-up to 18 megaohms.
