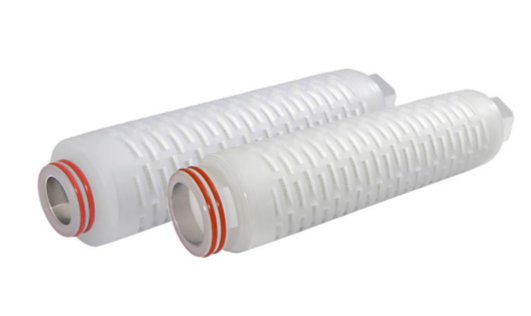

GSPES-Series Overview

GSPES filter cartridges deliver extended service life and excellent retention. The serial-layer design makes the GSPES an ideal choice for the clarification or particulate-heavy solutions in a wide variety of food & beverage, pharmaceutical, biological, and high-purity chemical applications. The GSPES series is available in 0.2, 0.45, & 0.65-micron ratings. The serial-layer design offers superior throughput volumes while protecting downstream sterilizing grade cartridges.

Each cartridge is flushed with 18 megohms High Purity deionized water and is integrity tested to ensure the delivery of clean effluent with low extractables. Designed to tolerate repeated hot water sa- nitization and in-situ steam sterilization cycles for maximum service life.

Typical Applications

• Bottled Water, Juices, Soft Drinks
• Wine, Beer, Spirits
• Bulk Pharmaceutical Solutions
• Bulk & Fine Chemicals

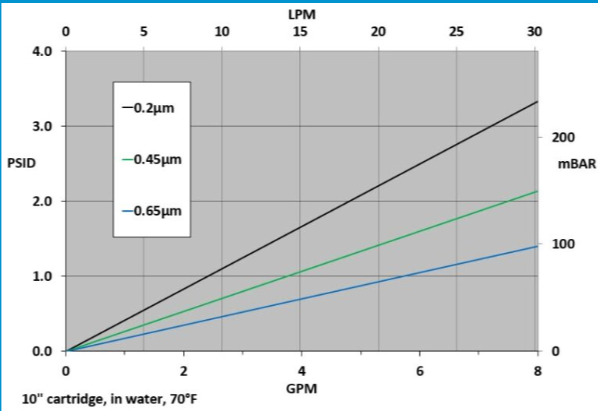

Flow Rate vs Pressure Drop

Dimensions

• Length: 10 to 40 inches ( 254 to 101.6 cm) nominal
• Outside Diameter: 2.70 inches (7.0 cm) nominal

Food Safety Compliance

Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21CFR. Materials used to produce filter media and hardware are deemed safe for use in contact with foodstuffs in accordance with EU Directives 1935/2004, and/or 10/2011.

GSPES-Series Ordering Specifications

Rating (μ)	0.2, 0.45, 0.65
Length	10″, 20″, 30″, 40″
End Cap Style	2 = DOE Flat Gasket 3 = 222 w/ Fin 4 = 222 w/ Flat Cap 6 = 226 w/ Flat Cap 7 = 226 w/ Fin 16 = 213 Internal O-Ring 28 = 222 3-Tabs w/ Fin
O-Rings/Gaskets	B = Buna-N E = EPDM S = Silicone T = Teflon® Encapsulated Viton® V = Viton® Z = Teflon® Encapsulated Silicone
Adders	CS = 316SS Compression Spring I = Stainless Steel Insert

Microbial Retention Performance

Rating	Challenge Microbe	Log Reduction Value
0.2μ	Brevundimonas diminuta	8.6
0.45μ	Serratia marcescens	7.6
0.65μ	Saccharomyces cerevisiae	5.8
