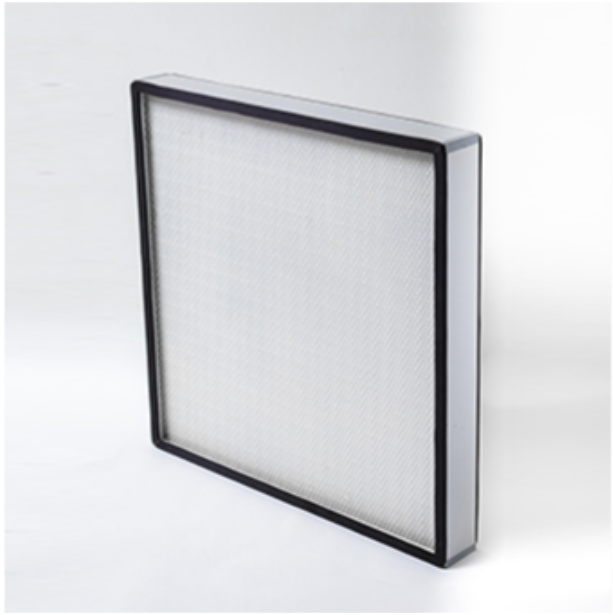

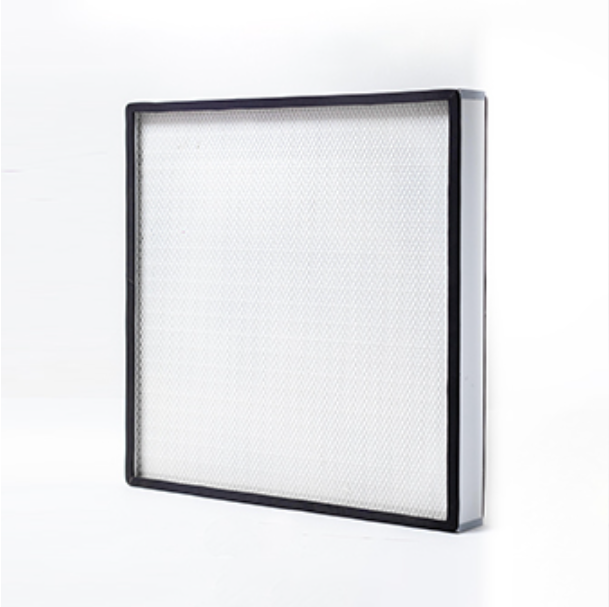

Spectra Guard Mini Pleat

Spectra Guard Mini Pleat is a HEPA grade filter, designed with mini pleat structure and separated by Hot-Melt separators. Each and every pleat has been designed with sharp curves to ensure as low resistance as possible. Spectrum’s mini-pleat HEPA filters offer outstanding performance and are factory scanned before they reach the customer. Individual testing under rigid quality control and modern assembly methods ensures confirmation to specifications.

  • High media area and high filter life
  • Thin and lightweight
  • easy to handle units
  • High mechanical strength
  • Tested and scanned as per EN 1822 2019
  • Available from E10-H14 grade
Category:
EN1822 Width (mm) Height (mm) Depth (mm) Initial Pressure Drop (Pa) Air Flow (m3/hr)
E11 305 610 66 250 600
E11 550 550 66 250 950
E11 610 305 66 250 600
E11 610 610 66 250 1200
E11 1220 610 66 250 2400
E11 305 610 69 250 600
E11 550 550 69 250 950
E11 610 305 69 250 600
E11 610 610 69 250 1200
E11 1220 610 69 250 2400
E11 305 610 72 250 700
E11 550 550 72 250 1200
E11 610 305 72 250 700
E11 610 610 72 250 1400
E11 1220 610 72 250 2850
E11 305 610 93 250 800
E11 610 305 93 250 800
E11 610 610 93 250 1600
E11 1220 610 93 250 3250
E11 305 610 110 250 950
E11 610 305 110 250 950
E11 610 610 110 250 2000
E11 1220 610 110 250 4000
E11 305 610 150 250 870
E11 610 305 150 250 870
E11 610 610 150 250 1750
E11 1220 610 150 250 3500
H 13 305 610 66 250 600
H 13 550 550 66 250 950
H 13 610 305 66 250 600
H 13 610 610 66 250 1200
H 13 1220 610 66 250 2400
H 13 305 610 69 250 600
H 13 550 550 69 250 950
H 13 610 305 69 250 600
H 13 610 610 69 250 1200
H 13 1220 610 69 250 2400
H 13 305 610 72 250 700
H 13 550 550 72 250 1200
H 13 610 305 72 250 700
H 13 610 610 72 250 1400
H 13 1220 610 72 250 2850
H 13 305 610 93 250 800
H 13 610 305 93 250 800
H 13 610 610 93 250 1600
H 13 1220 610 93 250 3250
H 13 305 610 110 250 950
H 13 610 305 110 250 950
H 13 610 610 110 250 2000
H 13 1220 610 110 250 4000
H 13 305 610 150 250 870
H 13 610 305 150 250 870
H 13 610 610 150 250 1750
H 13 1220 610 150 250 3500
H 14 305 610 66 250 560
H 14 550 550 66 250 650
H 14 610 305 66 250 560
H 14 610 610 66 250 1100
H 14 1220 610 66 250 2260
H 14 305 610 69 250 560
H 14 550 550 69 250 650
H 14 610 305 69 250 560
H 14 610 610 69 250 1100
H 14 1220 610 69 250 2260
H 14 305 610 72 250 670
H 14 550 550 72 250 760
H 14 610 305 72 250 670
H 14 610 610 72 250 1340
H 14 1220 610 72 250 2680
H 14 305 610 93 250 760
H 14 610 305 93 250 760
H 14 610 610 93 250 1520
H 14 1220 610 93 250 3050
H 14 305 610 110 250 780
H 14 610 305 110 250 780
H 14 610 610 110 250 1575
H 14 1220 610 110 250 3150
H 14 305 610 150 250 800
H 14 610 305 150 250 800
H 14 610 610 150 250 1600
H 14 1220 610 150 250 3200
