Spectra Xtreme

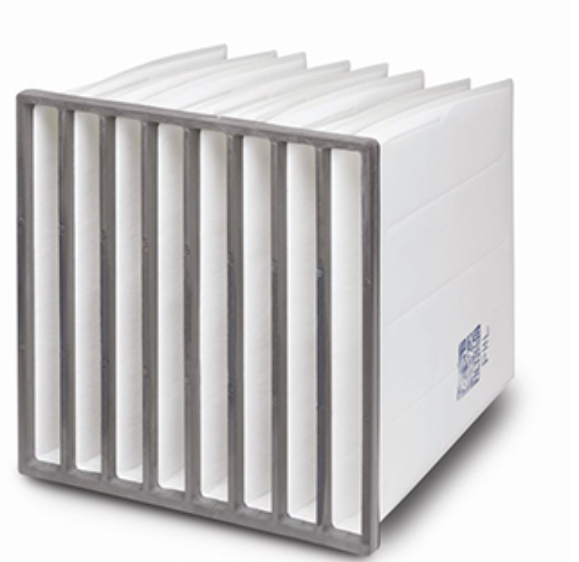

Spectra Xtreme Series PPL rigid filters serve as pre-filter in air intake systems of combustion engines, industrial plants and in all HVAC applications. They are suitable for filtration in any environmental condition – including offshore, marine – and in any climate – including tropical. They not only efficiently remove airborne particulate matter but also snow, mist and fog. Where subsequent final filters are placed, they protect them from coarser dust, salt and fog, thus significantly prolonging their life and increasing their operational safety.
    • Aerodynamic wedge-shape tubular Pocket Spacers
    • Injection moulded
    • Impact-proof
    • Burst strength of < 6000 Pa
    • Completely incinerated
  • UL Class 2
  • DIN 53438-F1
Category:
EN779 ASHRAE 52.2 ISO 16890 Width (mm) Height (mm) Depth (mm) Initial Pressure Drop (Pa) Air Flow (m3/hr) No of Pockets
G4 MERV 8 ISO Coarse 80% 595 595 330 45 3400 6
G4 MERV 8 ISO Coarse 80% 595 595 620 35 3400 6
G4 MERV 8 ISO Coarse 80% 595 595 330 65 4250 6
G4 MERV 8 ISO Coarse 80% 595 595 620 50 4250 6
M5 MERV 10 ePM10 55% 595 595 330 65 3400 6
M5 MERV 10 ePM10 55% 595 595 620 45 3400 6
M5 MERV 10 ePM10 55% 595 595 330 98 4250 6
M5 MERV 10 ePM10 55% 595 595 620 68 4250 6
M6 MERV 12 ePM10 60% 595 595 620 55 3400 8
M6 MERV 12 ePM10 60% 595 595 620 80 4250 8
F7 MERV 13 ePM10 80% 595 595 620 90 3400 8
F7 MERV 13 ePM10 80% 595 595 620 120 4250 8
